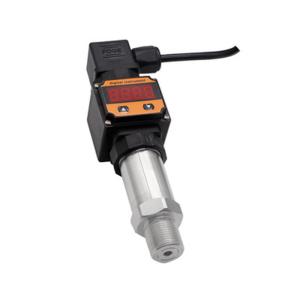

YW-130 LED Rod Shaped Band Display Pressure Transmitter Hydraulic Oil Pressure Air pressure
The on-site display pressure transmitter is produced using internationally advanced piezoresistive sensing technology, and different sensing cores can be selected according to the application. It is fully stainless steel packaged and equipped with high-precision LED digital display instruments, suitable for most media, with good long-term stability, multiple signal outputs to choose from, and can be used in various environments and climates. Therefore, it is widely used in various fields.
1. Reliable performance, safe and convenient use；
2. Equipped with short-circuit protection and reverse polarity protection；
3. Can measure gauge pressure, absolute pressure, and sealing reference pressure；
4. Intrinsically safe products that meet the requirements of Exia II CT6 in the national GB3836.4 standard；
5. Flameproof products that meet the requirements of the national GB3836.2 standard and have obtained explosion-proof certificates；
6. The product provides a one-year warranty service；
| Power supply | 24VDC |
| Measuring range | -1～0～600Bar (customized) |
| Output signal | 4-20mA (2 wire), 0.5-4.5V; 0-5V; 1-5V; 0-10V (3 wire), I2C (digital signal) |
| Supply voltage | 12～36(24)VDC |
| Operating temperature | -20～85℃ |
| Compensation temperature | -20～80℃ |
| Operating current | ≤3mA |
| Response time | ≤3m/s |
| Overload pressure | 150%FS |
| Burst pressure | 300%FS |
